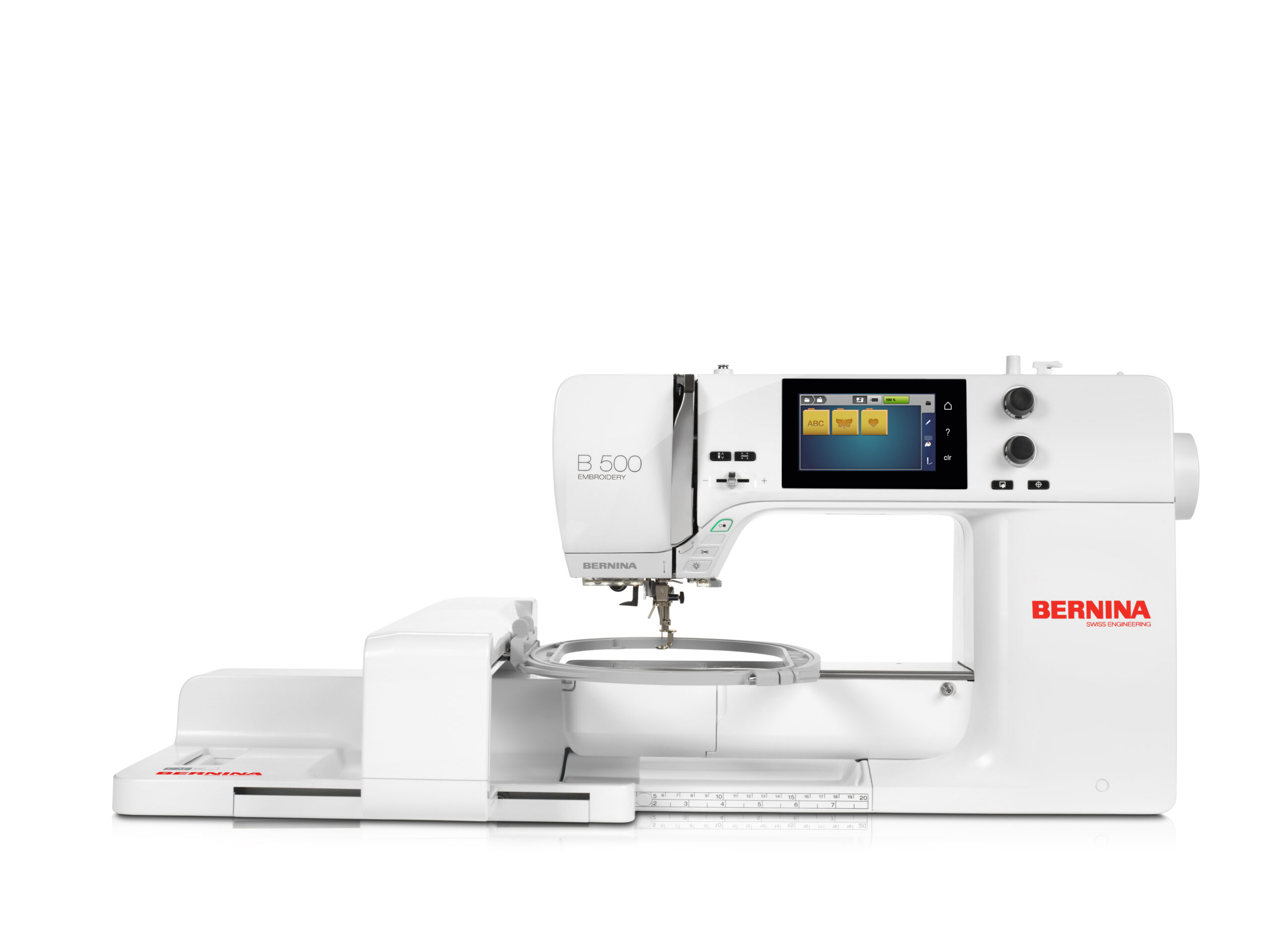

BERNINA 500E

Description

More space for creative freedom

• Handle big projects with ease
• Comfortably create endless designs
• Re-designed embroidery module

The extended freearm offers 8.5″ right of the needle. Enjoy a large embroidery area of 15.75″ x 5.9″ to bring your embroidery ideas to life.

Edit your designs with ease

• Simply undo & redo steps
• Edit designs as a group or break apart
• Customize the stitch-out sequence

With the Enhanced Editing Functions you can realize your ideas directly on screen and use your creativity to create new designs.

Easy design positioning

• Position designs easily and precisely
• No need to use the template anymore
• Perfect results in short times

Use Pinpoint Placement to position your design precisely: select two points and match them with the markings on the hooped fabric.

Automatic features save time

• Automatic thread cutting
• Needle lifts automatically
• Easy one-button operation

The automatic thread cutter operates with two steps in one: cuts the thread and lifts the needle.

Perfection is the new standard

• Manage thread cuts with ease
• No manual trimming on top side
• Achieve perfect embroidery results

The Thread Away Mode pulls the threads down to the underside for clean embroidery results on the top.

Finest embroidery results for you

• Perfect stitches, fast & quiet
• Jumbo bobbin to embroider longer
• Frontload the bobbin with new thread

The BERNINA Hook keeps the stitches consistent and precise with a maximum speed of 1,000 stitches per minute.

Main Features
BERNINA hook System
Length of freearm to the right of the needle – 8.5 inches
Colour Touchscreen 4.3 Inches
LED sewing lights – 12 LED’s
Multi Function Knobs
Number of spool holders – 2
Automatic thread cutter
Semi-Automatic needle threader
Manual thread cutter – 4
Adaptive Thread Tension
Start/Stop button (Stitching without foot control)
Slide Speed Control
Upper Thread Indicator
Lower Thread Indicator
USB interface for PC connections
Optional Bernina foot control with back-kick function
Bobbin winding while embroidering
On-screen help
Setup program
Dust Cover
Magnetic Accessory Box

Embroidery Features
Embroidery functionality
Embroidery module
Maximum embroidery area – 15.7″ x 5.9″
Maximum embroidery speed (Stitches per minute) – 1000
Built-in embroidery designs – 275
Embroidery alphabets – 8
Embroidery design format – EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
On-screen editing of designs; positioning, mirroring, rotating, scaling, combining
Import/Export of patterns via USB
Pinpoint placement
Undo/Redo
Group/Ungroup
Colour wheel
Invisible secure
Smart secure
Thread-up command
Programmable jump stitch cutting
Thread away mode
Embroidery Consultant
Midi hoop functionality (embroidery field: 400 x 150mm)
Freearm embroidery
Personal memory for embroidery designs
Lettering manipulation (WordArt)
Colour resequencing
Sequence control
Basting
Endless embroidery
Position recall
Bernina Artlink embroidery software (Downloadable from Bernina.com)
Embroidery Tutorial

Operation and maintainance
Canvas Slip Cover
Machine Oil
Screwdriver
Seam Ripper
Soft Accessory Case
Cleaning Brush
Instruction Manual
